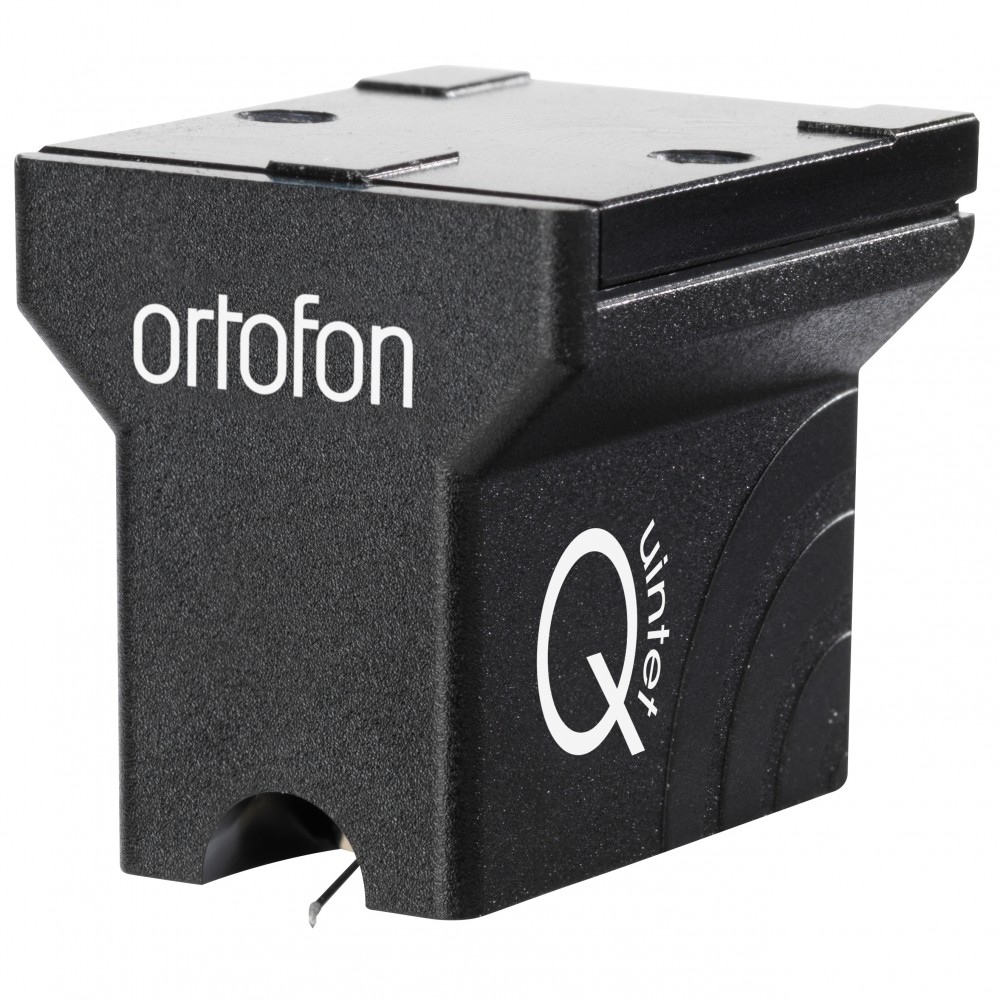

Ortofon - MC Quintet Black S

Name: Ortofon - MC Quintet Black S
Brand: Ortofon
SKU: OR0022
Price: 399600 HUF
Availability: InStock

Cikkszám: OR0022

Ortofon - MC Quintet Black S

Cikkszám: OR0022

Rendelhető

399 600 Ft

A vásárlás után járó pontok: 7 992 Ft

MC lemezjátszó hangszedő

Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon have introduced about 100 different moving coil models, with their latest being the Quintet Series.Ortofon believe the cartridges in this new series are more than worthy successors to the long line of models that have made Ortofon the global leader in the manufacturing and supplying of phono cartridges.The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance sapphire cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction through out the spectrum, including even the most high frequency groove details.The Quintet Black S is unfettered by musical genre and will give the closest approach within the Quintet series to Ortofon’s true accuracy in sound.The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without colouration.

Key Features:

Light weight and durable cartridge body made from a special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
Neodymium magnets are implemented to achieve an optimal output
Produces detailed and pure reproduction though-out the spectrum, volume and soundstage
Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
Supplied with 2 screws (M2.5 x 5)
Nude Shibata stylus profile

Következő beérkezés

Rendelésre (2-4 munkanap)

Jótállási idő

36 hónap

Adatok

Hangszedő tulajdonságok

MC (mozgó tekercs), Csavaros rögzítésű (hagyományos)

Gyártó

Ortofon

Hangszedő típusa

MC (mozgó tekercs)

Cikkszám

OR0022

Weboldal

https://www.ortofon.com/mc-quintet-black-s-p-549-n...

Bemutató

Műszaki adatok

Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
Channel balance at 1 kHz - < 1.0 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20 - 25.000 Hz
Frequency response 20-20.000 Hz - +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 15 µm/mN
Stylus type - Nude Shibata on Sapphire cantilever
Stylus tip radius - r/R 6/50 µm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force, recommended - 2.3 g (23 mN)
*) Typical value
Tracking angle - 20°
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - > 20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Aucurum (gold-plated 99.999999% oxygen free mono crystalline copper)
Cartridge colour - Black
Cartridge weight - 9 g
