Type: VM Type
Mounting: 1/2” centres
Frequency Response: 20 - 23,000Hz
Channel Separation: 27dB (1kHz)
Output Channel Balance: 1.5dB (1kHz)
Output Voltage: 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle: 23˚
Vertical Tracking Force Range: 1.8 – 2.2g (2.0g standard)

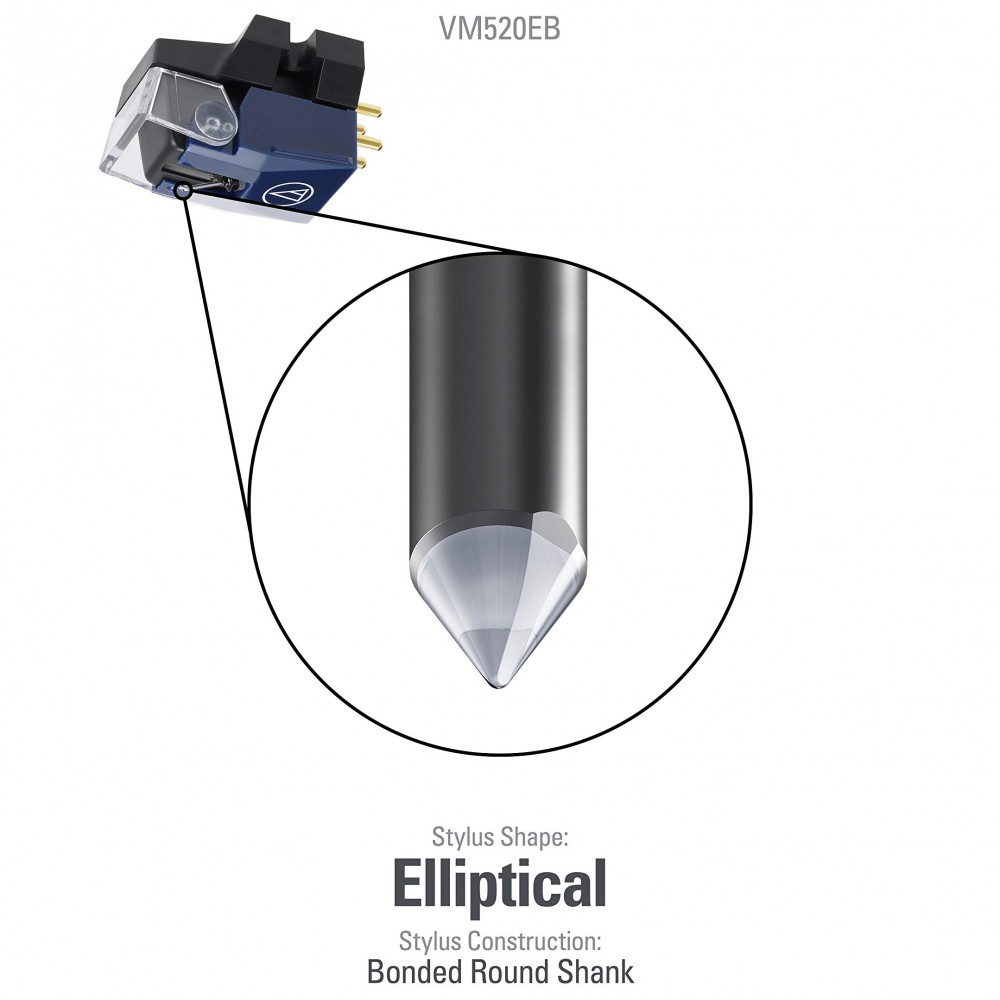

Stylus Shape: Elliptical Bonded
Stylus Size: 0.3 x 0.7 mil
Stylus Construction: Bonded Round Shank
Cantilever: Aluminium Pipe
Coil Impedance: 2,700Ω (1kHz)
Static Compliance: 35 x 10-6 cm/dyne
Dynamic Compliance: 8 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance: 47,000Ω
Recommended Load Capacitance: 100 – 200pF
Weight: 6.4g
Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement: Stylus VMN20EB
Accessories Included: Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
